Intrusive Smart Pointers + Heap Only Types = 💞

In this post:

• Heap only types: Where do they appear?
• Handling heap only types: Box, Rc and Arc
• Cloning a handle from a heap-only borrow? (Yes, but…)
• Can this be more idiomatic? (Yes, if…)
• Heap-only mutability
• Intrusive counting
• How to do this 99% safely? (I made a crate.)
• The Clone hole ⚠
  • Plugging the Clone hole
• Where to go from here

---

Prior work:

• The initial approach is inspired by triomphe::ArcBorrow.

---

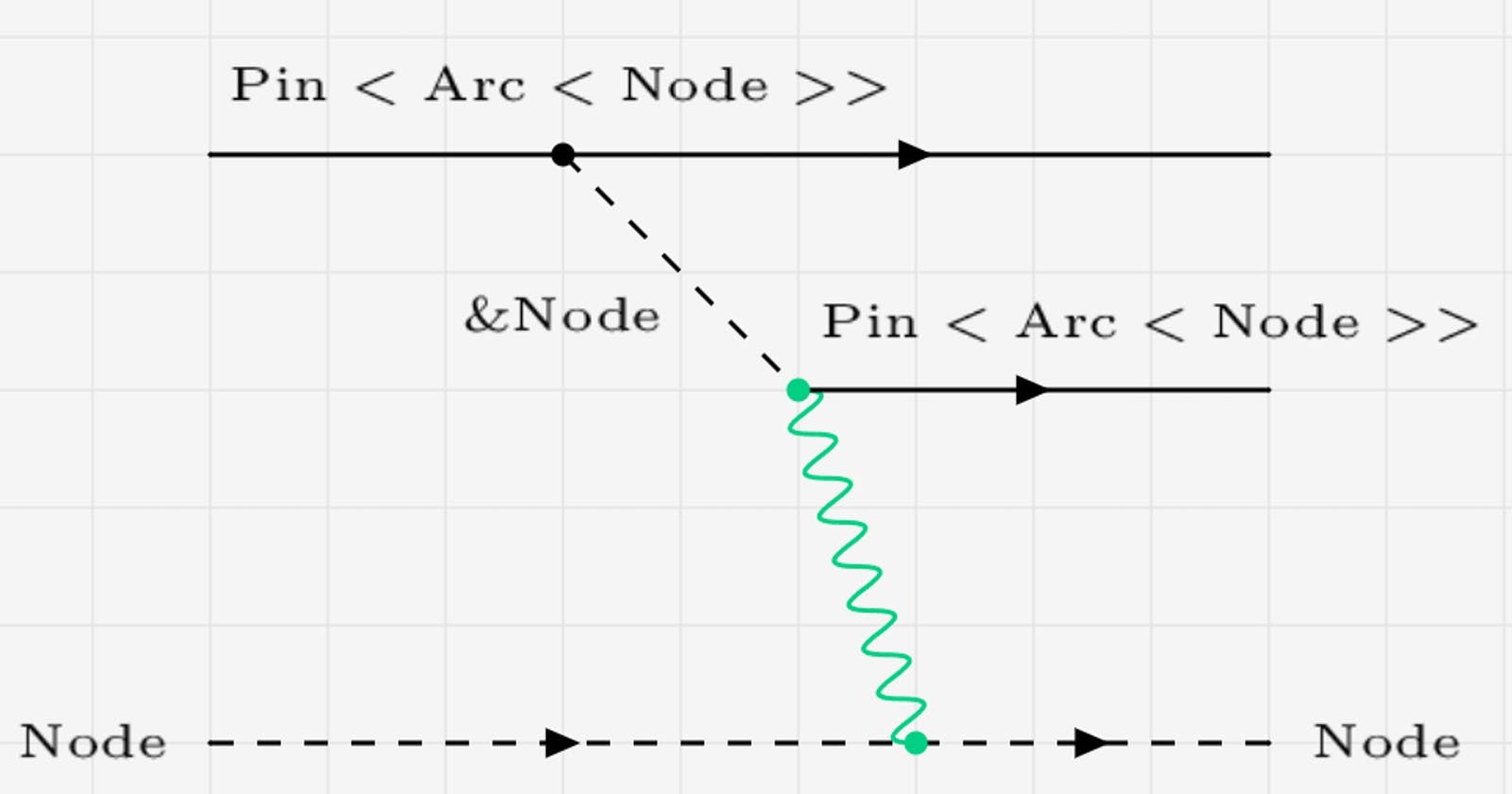

Cover image made using https://feynman.aivazis.com/.
Not physically accurate. Time is horizontal. Lifetime dependencies omitted.

---

Please note that this post is a proof of concept. I’m confident it can be implemented in a way that has no or negative overhead compared to, for example, the standard library’s smart pointers, but I have not gotten around to do this yet.

Heap Only Types

Rust can model (at least) two kinds of heap-only-ish types: Unsized types, which cannot be placed on the stack by the compiler because their size is unknown, and semantically heap-only types, which are contextually heap-only whenever an API doesn’t allow them to be observable elsewhere. As usual, these limitations don’t exist for unsafe Rust, which is beyond the scope of this post.

The type examined here is only semantically heap-only towards a consumer in a different crate, but the pattern I present also works for unsized (dynamically-sized) types.

Where do they appear?

There is an opportunity to make a type heap-only whenever it would otherwise be useless. A good example is the following reference-counted inverse tree:

// ances-tree/lib.rs
use std::{borrow::Borrow, sync::Arc};
use tap::Pipe; // ¹

#[cfg(doctest)]
pub mod readme {
	doc_comment::doctest!("../README.md");
}

/// A reference-counting inverse tree node.
#[derive(Debug, Clone)]
pub struct Node<T> {
	pub parent: Option<Arc<Self>>,
	pub value: T,
}

impl<T> Node<T> {
	/// Creates a new [`Node`] instance with the given `parent` and `value`.
	pub fn new(parent: Option<Arc<Self>>, value: T) -> Self {
		Self { parent, value }
	}

	/// Retrieves a reference to a [`Node`] with a value matching `key` iff available.
	///
	/// See also: <https://doc.rust-lang.org/stable/std/collections/hash_set/struct.HashSet.html#method.get>
	#[must_use]
	pub fn get<Q: ?Sized>(&self, key: &Q) -> Option<&Self>
	where
		T: Borrow<Q>,
		Q: Eq,
	{
		let mut this = self;
		while this.value.borrow() != key {
			this = this.parent.as_ref()?
		}
		Some(this)
	}

	// Abridged. See omitted code at ².
}

¹ Not shown in this abridged snippet, I’m using myrrlyn’s excellent tap crate to organise long expressions in execution order.
² Tamschi/ances-tree 🔖blog-link/basic-inverse-tree (lib.rs#L46-L124)

💁‍♂️ I’ve published this example crate on GitHub and will occasionally link tags and diffs for you to follow along. The project that inspired this pattern, rhizome, is too verbose and messy to cite here, but follows generally the same structure.
You can see the changes for each section in this post in the blog-steps branch. GitHub isn’t too clear about this, but the section title ones are merge commits that together contain all changes.

Note that the above doesn’t make Node heap-only yet!

Handling heap only types

To restrict a type to the heap, we pin it behind a smart pointer (in this case Arc) as follows:

use std::{borrow::Borrow, marker::PhantomPinned, pin::Pin, sync::Arc};
use tap::Pipe;

/// A reference-counting inverse tree node.
#[derive(Debug)] // No `Clone`!
pub struct Node<T> {
	pub parent: Option<Pin<Arc<Self>>>,
	pub value: T,
	// The private field also prevents construction elsewhere.
	_pin: PhantomPinned,
}

impl<T> Node<T> {
	/// Creates a new [`Node`] instance with the given `parent` and `value`.
	pub fn new(parent: Option<Pin<Arc<Self>>>, value: T) -> Pin<Arc<Self>> {
		Self {
			parent,
			value,
			_pin: PhantomPinned,
		}
		.pipe(Arc::pin)
	}

	// `.get(…)` unchanged.
	// `.get_mut(…)` and `.make_mut(…)` removed for now.
}

The consumer now never sees a Node or &mut Node directly, which means the instances can’t be moved away from the heap.

The .get(…) method remains unchanged as &Node is still accessible through impl<P: Deref> Deref for Pin<P>.

.get_mut(…) and .make_mut(…) have been removed for now since the Rust standard library doesn’t provide equivalents of its Arc::get_mut and Arc::make_mut functions for Pin<Arc<…>>.
Note that even exclusively held Node’s are effectively read-only now. There are work-arounds for all of this, of course, but they involve a lot of unsafe. This feature will safely come back later on, though.

Cloning a handle from a heap-only borrow?

When borrowing the contents of an Arc<T>, we usually want to handle a &T rather than an &Arc<T> to avoid a double-indirection when accessing the value.

Since any API consumer will only see pinned Nodes, we know that any &Node we see actually points to an instance managed by Arc. Can we increment the reference count to create an additional Arc?

The answer is, unfortunately here but fortunately in general, no.

Even if Arc had a known layout with a known pointer offset, we would not be allowed to magic-up a borrow using pointer maths:
As the Arc reference count is stored outside Node, we must not* access it through &Node even using pointer maths, as this would be an out-of-bounds read.

💁‍♂️ *Technically code like that works right now, but I’m told it’s still considered UB. Never allowing out-of-bounds access through references could enable or at least simplify powerful optimisations in the future.

As triomphe has a matching known-Arc-borrow API, we can quickly see what this would look like if we borrowed into a pointer and abstracted instead.

First, we switch out the Arc import:

use std::{borrow::Borrow, marker::PhantomPinned, pin::Pin};
use tap::Pipe;
use triomphe::{Arc, ArcBorrow};

and adjust the constructor a bit since triomphe isn’t Pin-aware:

impl<T> Node<T> {
	/// Creates a new [`Node`] instance with the given `parent` and `value`.
	pub fn new(parent: Option<Pin<Arc<Self>>>, value: T) -> Pin<Arc<Self>> {
		Self {
			parent,
			value,
			_pin: PhantomPinned,
		}
		.pipe(Arc::new)
		.pipe(|arc| unsafe { Pin::new_unchecked(arc) })
	}

	// `.get(…)` unchanged.
	// `.get_mut(…)` and `.make_mut(…)` still missing.
}

We also have to shim the following functions:

#[must_use]
pub fn borrow<T>(this: &Pin<Arc<Node<T>>>) -> Pin<ArcBorrow<'_, Node<T>>> {
	unsafe { &*(this as *const Pin<Arc<Node<T>>>).cast::<Arc<Node<T>>>() }
		.pipe(Arc::borrow_arc)
		.pipe(|arc_borrow| unsafe { Pin::new_unchecked(arc_borrow) })
}

#[must_use]
pub fn clone_arc<T>(this: &Pin<ArcBorrow<Node<T>>>) -> Pin<Arc<Node<T>>> {
	unsafe { &*(this as *const Pin<ArcBorrow<Node<T>>>).cast::<ArcBorrow<Node<T>>>() }
		.pipe(ArcBorrow::clone_arc)
		.pipe(|arc| unsafe { Pin::new_unchecked(arc) })
}

So far so good.

Their signatures are a mouthful, so we’ll change the code again to abstract the borrow type a bit, and use that abstraction everywhere it’s applicable.

First the borrow:

#[derive(Debug)]
pub struct NodeBorrow<'a, T> {
	arc_borrow: Pin<ArcBorrow<'a, Node<T>>>,
}

impl<T> Deref for NodeBorrow<'_, T> {
	type Target = Node<T>;

	fn deref(&self) -> &Self::Target {
		&*self.arc_borrow
	}
}

And then the handle:

#[derive(Debug)]
pub struct NodeHandle<T> {
	arc: Pin<Arc<Node<T>>>,
}

impl<T> NodeHandle<T> {
	/// Creates a new [`Node`] instance with the given `parent` and `value`.
	pub fn new(parent: Option<NodeHandle<T>>, value: T) -> Self {
		Node {
			parent,
			value,
			_pin: PhantomPinned,
		}
		.pipe(Arc::new)
		.pipe(|arc| unsafe { Pin::new_unchecked(arc) })
		.pipe(|arc| Self { arc })
	}

	#[must_use]
	pub fn borrow(this: &Self) -> NodeBorrow<'_, T> {
		unsafe { &*(&this.arc as *const Pin<Arc<Node<T>>>).cast::<Arc<Node<T>>>() }
			.pipe(Arc::borrow_arc)
			.pipe(|arc_borrow| unsafe { Pin::new_unchecked(arc_borrow) })
			.pipe(|arc_borrow| NodeBorrow { arc_borrow })
	}

	#[must_use]
	pub fn clone_handle(this: &NodeBorrow<T>) -> Self {
		unsafe {
			&*(&this.arc_borrow as *const Pin<ArcBorrow<Node<T>>>).cast::<ArcBorrow<Node<T>>>()
		}
		.pipe(ArcBorrow::clone_arc)
		.pipe(|arc| unsafe { Pin::new_unchecked(arc) })
		.pipe(|arc| Self { arc })
	}
}

impl<T> Deref for NodeHandle<T> {
	type Target = Node<T>;

	fn deref(&self) -> &Self::Target {
		&*self.arc
	}
}

Node itself loses its constructor and now stores a NodeHandle as parent reference:

/// A reference-counting inverse tree node.
#[derive(Debug)]
pub struct Node<T> {
	pub parent: Option<NodeHandle<T>>,
	pub value: T,
	_pin: PhantomPinned,
}

impl<T> Node<T> {
	// Constructor removed, otherwise unchanged.
}

That’s fairly nice now. The only sticking points are that we have a NodeBorrow<'a, T> instead of an &'a Node and no exclusive/mutable references to Node.

Exposing two bespoke helper types to fix clumsy signatures also isn’t ideal, but more of an incidental issue.

Can this be more idiomatic?

Let’s say we had a hypothetical Arc<T> that was legal to borrow from &T. Let’s also say it was pinning-aware so that we can skip some boilerplate while preventing any de-boxing.

First, our NodeHandle is now a type alias, since we won’t need additional functions:

pub type NodeHandle<T> = Pin<Arc<Node<T>>>;

Second,

pub type NodeBorrow<'a, T> = &'a Node<T>;

, but since that type alias is longer than its original type, we’ll just write &Node<T> instead.

Third, Node remains unchanged for now, but all functions are concentrated on that type like this:

impl<T> Node<T> {
	/// Creates a new [`Node`] instance with the given `parent` and `value`.
	pub fn new(parent: Option<NodeHandle<T>>, value: T) -> NodeHandle<T> {
		Node {
			parent,
			value,
			_pin: PhantomPinned,
		}
		.pipe(Arc::pin)
	}

	/// Retrieves a reference to a [`Node`] with a value matching `key` iff available.
	///
	/// See also: <https://doc.rust-lang.org/stable/std/collections/hash_set/struct.HashSet.html#method.get>
	#[must_use]
	pub fn get<Q: ?Sized>(&self, key: &Q) -> Option<&Self>
	where
		T: Borrow<Q>,
		Q: Eq,
	{
		let mut this = self;
		while this.value.borrow() != key {
			this = this.parent.as_ref()?
		}
		Some(this)
	}

	#[must_use]
	pub fn clone_handle(&self) -> NodeHandle<T> {
		todo!() // 🤔
	}

	// Mutability will be back, eventually.
}

The Arc can’t know that our Node is only ever visible behind Arc, so we have to provide a safe .clone_handle() method ourselves.

Heap-only mutability

The signature of an exclusive borrow in Rust is Pin<&mut _>. While the Arc can’t be DerefMut (which would allow us to use Pin::as_mut), it can generically provide us with pinning alternatives to its get_mut and make_mut methods.

We can use these to go from &mut NodeHandle<T> to Pin<&mut Node<T>>.

💁‍♂️ Pin<&mut Node<T>> is Deref<Target = Node<T>> (because &mut Node<T> is the same), so we could access a shared reference and clone the NodeHandle<T>, which would give us a parallel shared reference to our now-free-again exclusive reference (&Node<T> and parallel &mut Node<T>). This would be extremely bad.

We’ll assume that the Arc already protects against this invalid construct, at the cost of slight (additional) overhead per exclusive borrow.

This isn’t quite enough to let a consumer change the contents of the instance, since we still aren’t providing mutable access to the public fields. Manual pin-projection is somewhat error-prone to implement, so we’re going to let the pin-project crate take care of that:

/// A reference-counting inverse tree node.
#[pin_project::pin_project]
#[derive(Debug)]
pub struct Node<T> {
	pub parent: Option<NodeHandle<T>>,
	pub value: T,
	#[pin] // Required to keep `Node<T>: !Unpin`!
	_pin: PhantomPinned,
}

impl<T> Node<T> {
	#[must_use]
	pub fn parent_mut<'a>(self: &'a mut Pin<&mut Self>) -> &'a mut Option<NodeHandle<T>> {
		self.as_mut().project().parent
	}

	#[must_use]
	pub fn value_mut<'a>(self: &'a mut Pin<&mut Self>) -> &'a mut T {
		self.as_mut().project().value
	}
}

We must mark _pin as structural(ly pinned) here; otherwise pin_project would impl<T> Unpin for Node<T> {} with no constraints.

The self: &'a mut Pin<&mut Self> parameter on these methods looks a bit strange, but lets a consumer call them directly on the guard we get from Arc::get_mut:

#[test]
fn test() {
	let mut handle = Node::new(None, 1);
	{
		let mut exclusive = Arc::get_mut(&mut handle).unwrap();
		let _: &mut i32 = exclusive.value_mut();
		let _: &mut Option<NodeHandle<i32>> = exclusive.parent_mut();
	}

	let second_handle = Pin::clone(&handle);
	assert!(Arc::get_mut(&mut handle).is_none());
	assert_eq!(second_handle.value, 1);
}

💁‍♂️ It’s likely a good idea to inline parent_mut and value_mut. However, performance-optimisation is arbitrarily out of scope for this post.

Intrusive counting

The reason alloc::sync::Arc and triomphe::Arc can’t quite soundly go from “&T-behind-Arc<T>” to a cloned Arc<T> is only the required out-of-bounds access to the Arc’s reference counter in those case.

If we can move the reference-counter inside the contained instance, we are then able to get a reference to it and, by effectively reimplementing alloc::sync::Arc<T> without exposing &mut T, can arrive at the API above.

At this point, only the following types are exposed:

• A generic Arc<T> that acts much like the standard library’s.
• A generic guard that ensures mutable borrow exclusivity dynamically.
• Our Node<T>, which contains the entirety of our API.

How to do this (almost) safely?

The necessary smart pointer I needed for the above turned out to be really easy to abstract, so I’ve turned it into a crate that you can find here: 📦tiptoe

(Be sure to activate the "sync" feature to use Arc.)

You still have to adjust your struct to make it compatible, but this can be done in few lines of code and without using unsafe more than once:

use std::{borrow::Borrow, pin::Pin};
use tap::Pipe;
use tiptoe::{Arc, IntrusivelyCountable, TipToe};

/// A reference-counting inverse tree node.
#[pin_project::pin_project]
#[derive(Debug)]
pub struct Node<T> {
	pub parent: Option<NodeHandle<T>>,
	pub value: T,
	#[pin] // Required to keep `Node<T>: !Unpin`!
	tip_toe: TipToe,
}

impl<T> Node<T> {
	/// Creates a new [`Node`] instance with the given `parent` and `value`.
	pub fn new(parent: Option<NodeHandle<T>>, value: T) -> NodeHandle<T> {
		Node {
			parent,
			value,
			tip_toe: TipToe::new(),
		}
		.pipe(Arc::pin)
	}
}

unsafe impl<T> IntrusivelyCountable for Node<T> {
	type RefCounter = TipToe;

	#[inline(always)]
	fn ref_counter(&self) -> &Self::RefCounter {
		&self.tip_toe
	}
}

TipToe, the reference-counting slot, is written to be as unobtrusive as possible:

• It’s transparent to all standard comparisons and hashing.
• It implements Default and Clone (but the clone always has the default value).
• It’s !Unpin, so it can be used to pin the surrounding struct.

tiptoe::Arc<T> will never provide a &mut reference to its contents directly (and provides Pin<&mut _> only as Pin<Arc<_>>), but if T: Unpin, then Arc<T> and Pin<Arc<T>>, and Pin<&mut T> and &mut T, are equivalent and can be converted safely. Keep this in mind when exposing instances of your types through a conversion that requires unsafe.

TipToed, the trait by which Arc finds the intrusive counter, is unsafe as Rust’s type system can’t guarantee a “boring” implementation with only one embedded counter returned at all times. (The actual safety requirements are actually slightly more lenient than that, though. The true requirement is that it mustn’t confuse the count in a way that would cause instances to be dropped early, and that the call must have absolutely no (observable) effect.)

Since Node is a heap-only and Arc-only type via pinning, we can additionally provide the following method:

impl<T> Node<T> {
	#[must_use]
	pub fn clone_handle(&self) -> NodeHandle<T> {
		Pin::clone(unsafe { Arc::borrow_pin_from_inner_ref(&self) })
	}
}

As you can see, we assume &self is behind a Pin<Arc<_>>. Arc<_> is ABI-compatible with a plain shared reference, so it can be borrowed from one (via a short detour through &&self).

The Clone hole ⚠

tiptoe::Arc also provides a make_mut function, which has the same copy-on-write functionality as in the standard library. However, there is a problem with making this available for our Node<T>: alloc::sync::Arc::<T>::make_mut requires T: Clone.

We cannot implement Clone on Node<_> because that would allow a consumer to move from &Node<T> to Node<T>, an instance decidedly off-heap.

Plugging the Clone hole

For this reason, tiptoe::Arc::<T>::make_mut instead requires tiptoe::ManagedClone. This trait has the same shape as Clone but its methods are unsafe and it comes with a caller restriction:

/// # Safety
///
/// This method may only be used to create equally encapsulated instances.
///
/// For example, if you can see the instance is inside a [`Box`](`alloc::boxed::Box`),
/// then you may clone it into another [`Box`](`alloc::boxed::Box`) this way.
///
/// If you have only a reference or pointer to the implementing type's instance,
/// but don't know or can't replicate its precise encapsulation, then you must not call this method.
///
/// You may not use it in any way that could have side-effects before encapsulating the clone.
/// This also means you may not drop the clone. Forgetting it is fine.
unsafe fn managed_clone(&self) -> Self;

In short: This method mustn’t be used by an API consumer to interact with unwrapped instances.

(Any type that is Clone is automatically ManagedClone.)

You can find this final step in the implementation here: Tamschi/ances-tree 🔖blog-link/managed-clone (lib.rs#L83-L94)
The develop branch also contains a rehash of the assumptions made at each location where unsafe is used.

Where to go from here

I’ve implemented tiptoe only as far as I personally need it, so there are a few open points where it could be more useful:

• Nobody has audited tiptoe so far. It contains a lot of unsafe snippets, so getting a few more eyes on it would be helpful in this regard.

• I currently only need Arc, not Rc. I’ve implemented TipToe in such a way that it can alternatively act as Rc reference counter with no synchronisation overhead, so it should be fairly easy to copy-paste the latter from the former if needed.

• The crate is unoptimised in terms of speed. I don’t have experience with benchmarking Rust and don’t need the crate to be particularly fast right now.

• TipToe is a strong reference counter only. From what I can tell, tiptoe::Arc and an eventual tiptoe::Rc could become compatible with an additional intrusive strong/weak counter without breaking API changes.

• I may add an ExclusiveArc<_> or Unique<_> type in the future, which would behave like a standard Box<_> but set the internal counter to the exclusivity value until converted into an Arc. It’s also likely possible to improve the way dynamic exclusivity works, but I suspect I currently lack the necessary skills for that.
